sabic官方文件 |一文让你看懂充电桩用什么材料

已有人阅读此文 - -

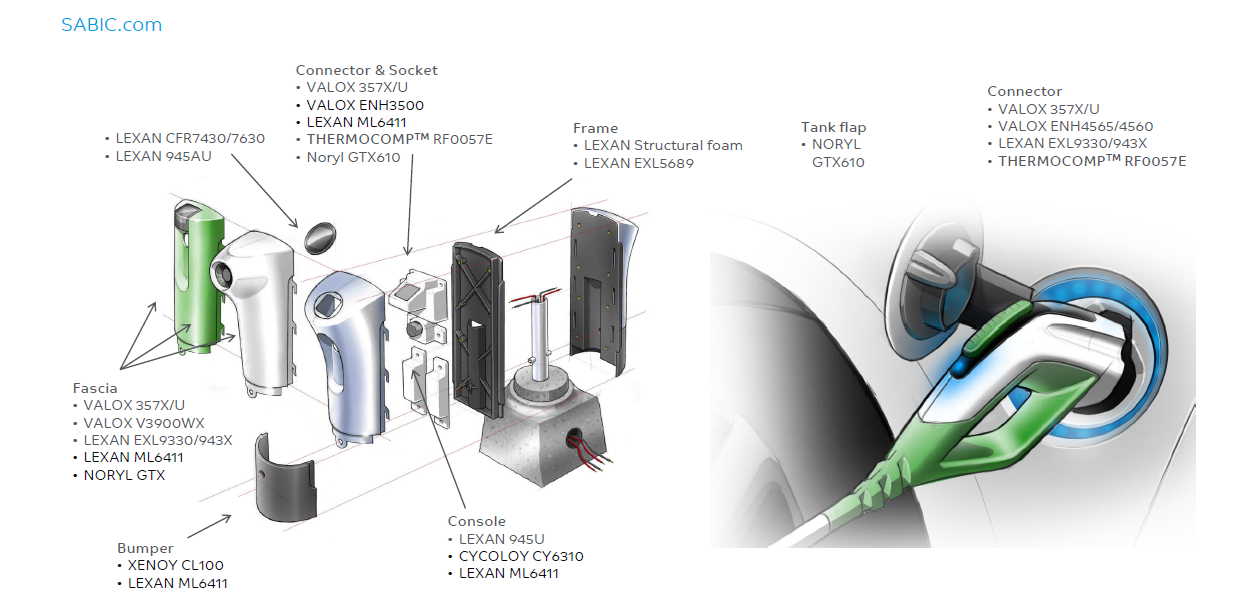

EV supply equipment (EVSE)
EV supply equipment include conductors, such as the phase, neutral and protective earth conductors, the EV couplers, attachment plugs, and other accessories, devices, power outlets or apparatuses installed specifically for the purpose of delivering energy from the premises wiring to the EV and allowing communication between them if required. SABIC has a wide range of resins and other material choices listed below that may be suitable for this application, and we can help customers to comply with Europe / US / APAC regulations and bring extra value to customers.
=

REGULATION AND INDUSTRY REQUIREMENT:
Europe :
IEC 61851-1 & 22, 23: 2010 (AC/DC):
Degree of Protection: IP degree Environment test (for charging station): Ambient air temperature test; Dry test Ambient humidity test
Cold test(-30 ± 3oC / 16h)
Impact Test: station body not damaged

Asia:
GB/T 18487.1 general Equal to IEC 61851-1 2001
GB/T 18487.3
equal to IEC 61851-22:1999 AC & IEC 61851-23:1999    DC
Japan adopting IEC 61851-1 & 22: 2010

US:
UL 2594 (AC)/UL 2202 (DC)
Flammability: Mainly 5VA (dep. product type) CTI: 3 or better, HWI and HAI: depend on FR
Mechanical strength: Impact: after aging at -30C / 24hr; Drop test (portable equipment)
Environmental Tests (UL 50E): - UV exposure: F1, UL746C, Solvents test; RTI: Higher than the temp observed on Temperature Rise Test

SABIC VALUE:
LEXAN EXL:
High Stiffness/Impact at minus 30°C Customer color: antrazith
UL94-V0-3 mm in combination with f1/5VA Low halogen content & bromine free FR Ductility at -20 to -60°C,
medium to high flow F1, 5VA, PLC 3

VALOX :
Unfilled PBT/PC alloy,
UL94 V0@ 0.63 -1.5mm, 5VA@3mm RTI 120C,CTI 2
UV stabilized, UL746C F1 all color Good chemical resistance, impact

THERMOCOMP:
THERMOCOMPTM RF0057E
PA66 base 25% GF Non- Brominated & Non-Chlorinated FR V0 @ 0.4mm, 5VA @ 1.6mm
GWIT (0.4mm) 775C CTI 600V RTI 140C/110C/140C HWI (PLC) 0
Good color-ability
